PLATINUM SMART-HEAT™ ELECTRIC SERIES II BLACK- 3400W BLACK- BH0320005
Free Freight Shipping!
Looking for a heater that offers the most effective heating technology, an award-winning design and very little light emission? You found it. With its ultra-slim, h... Read More
Call 866-327-1447
- Description
- Specifications

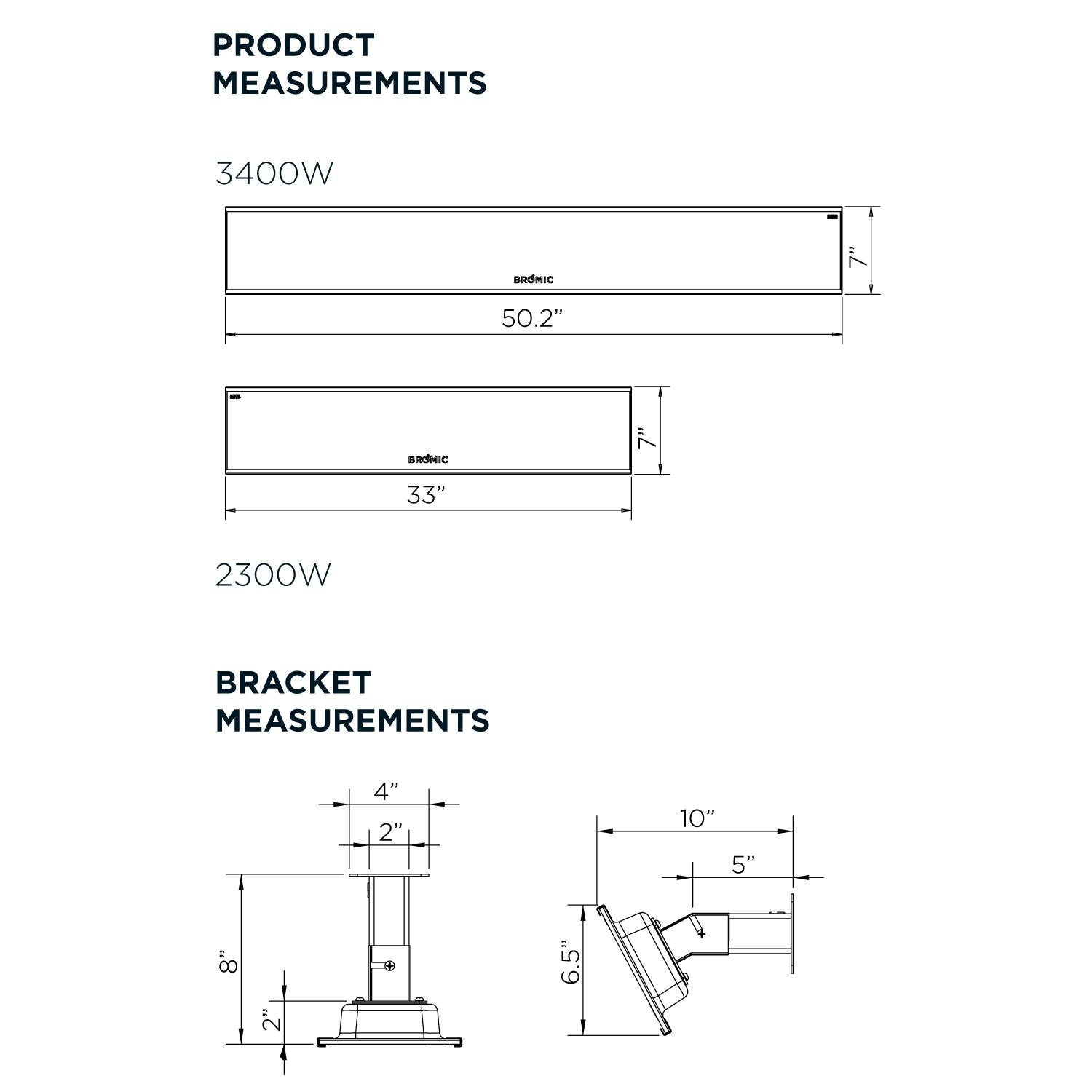

- Dimensions
- Downloads
- Venting Notes

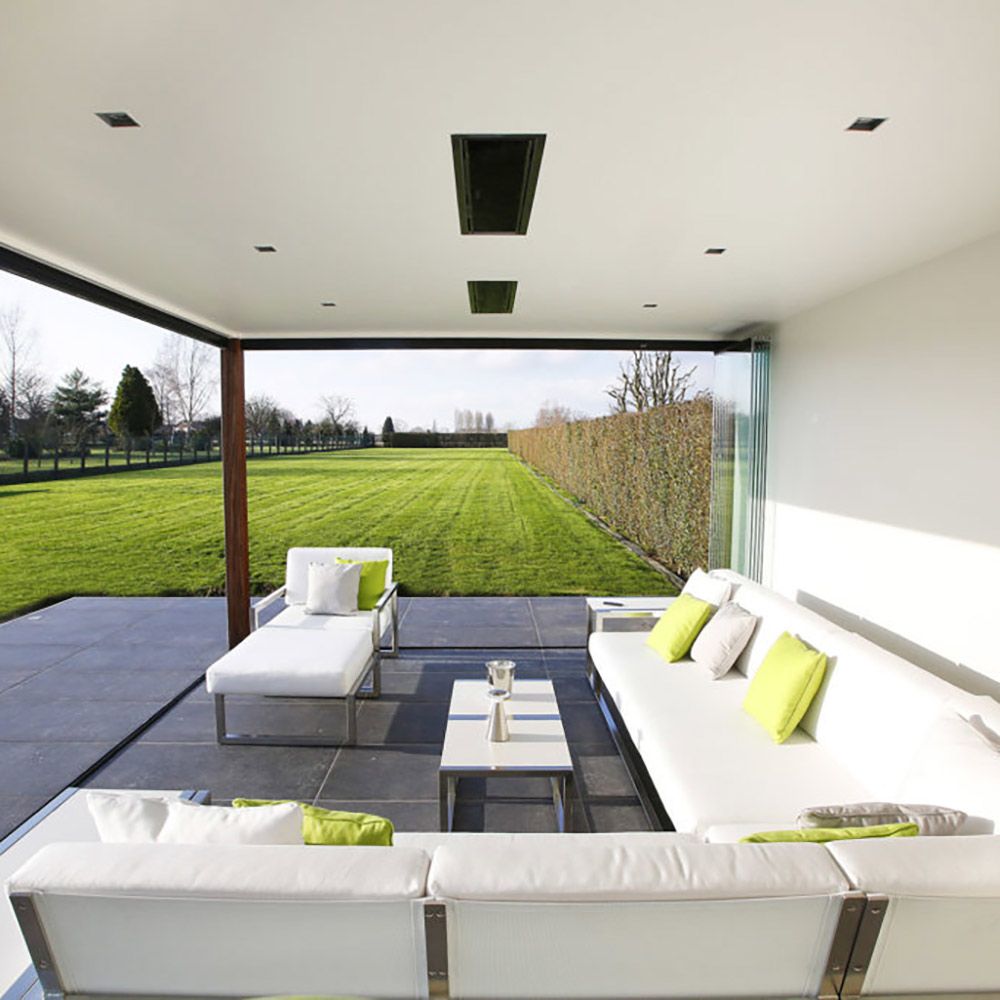

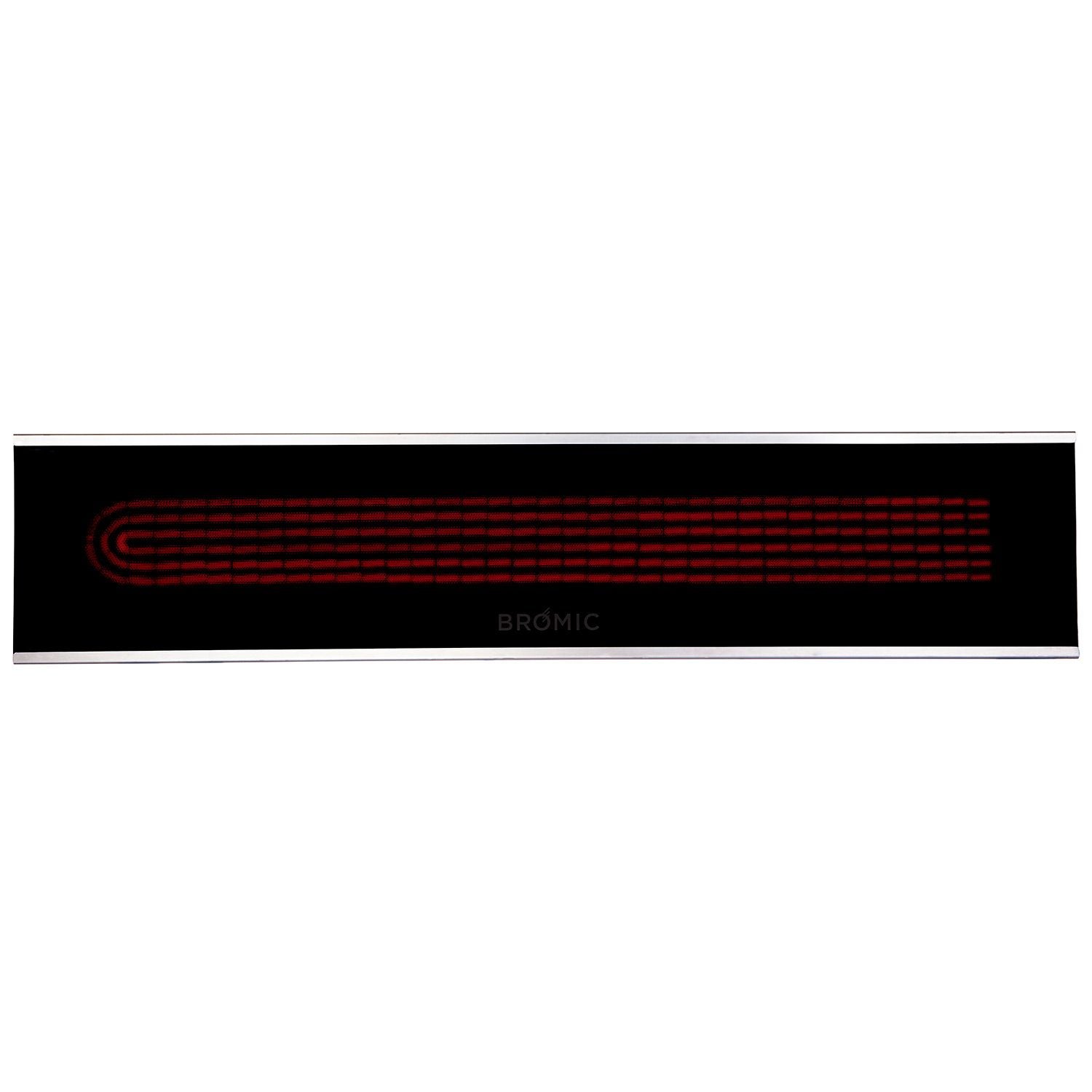

Looking for a heater that offers the most effective heating technology, an award-winning design and very little light emission? You found it. With its ultra-slim, high-quality 304 stainless steel chassis and Schott tinted ceramic-glass screens, the award-winning Platinum Smart-Heat™ Electric virtually disappears into its surroundings while delivering market-leading radiant heat output that will warm you and not the air – just like the sun.
Available in both black and white and three sizes (2300W, 3400W and 4500W), this premium heater was specifically designed for low-clearance, semi-enclosed spaces and can be mounted with minimal clearance requirements.
Specifications
Please reference the specification guide below to help you select the correct solution for your needs.
| MODEL | 2300W SERIES | 2300W SERIES | 3400W SERIES | 3400W SERIES | 4500W SERIES | 4500W SERIES |
| FUEL TYPE | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC |
| COLOR | BLACK | WHITE | BLACK | WHITE | BLACK | WHITE |
| MODEL # | BH0320003 | BH0320007 | BH0320005 | BH0320008 | BH3622000 | BH3622001 |
| HEAT AREA | 65ft2 | 65ft2 | 108ft2 | 108ft2 | 143ft2 | 143ft2 |
| RATED CURRENT * | 220-240V/9.6A
208V/11.1A | 220-240V/9.6A
208V/11.1A | 220-240V/14.2A
208V/16.3A | 220-240V/14.2A
208V/16.3A | 220-240V/18.8A
208V/21.6A | 220-240V/18.8A
208V/21.6A |
| MINIMUM FLOOR CLEARANCE | Wall 72”
Ceiling 96” | Wall 72”
Ceiling 96” | Wall 72”
Ceiling 96” | Wall 72”
Ceiling 96” | Wall 72”
Ceiling 96” | Wall 72”
Ceiling 96” |
| CONTROL OPTIONS | 2300W SERIES | 3400W SERIES | 4500W SERIES |
| ON | OFF | ✓ | ✓ | ✓ |
| DIMMER REMOTE | ✓ | ✓ | ✓ |
| MASTER REMOTE ** | ✓ | ✓ | ✓ |
*Available in varying voltages: 220/240v and 208V.
**Independently control up to six zones of heaters with unlimited heaters per zone from a single remote. Dimmer controller required. Control operates within 100ft of heaters.
